1_concept
The evergreen

BAUER irrigation pumps

The success story of company BAUER began with the invention of a pump. For more than 90 years we have now been working on design and manufacture of our pumps for water, waste water and slurry. Many years of expertise, continuous research and development are a guarantee for optimal performance and top quality.

The FAMOS pump is our "all-time favourite" and is suitable for all situations in everyday irrigation. Whether together with a Rainstar or with a pipe irrigation system or just for pumping liquids from A to B, whether as a pump for beginners or as a backup, the FAMOS is always a good choice. The FAMOS – strong and smart - is aware of its own abilities and strengths and works smoothly in a very professional way. This is real coolness and this is why the FAMOS is said to be an evergreen in the BAUER pump range.

easy handling

high efficiency

proven quality

Bauer Beregnung Famos Traktorgetriebepumpe
The strong heart of the irrigation system

The pump with excellent performance

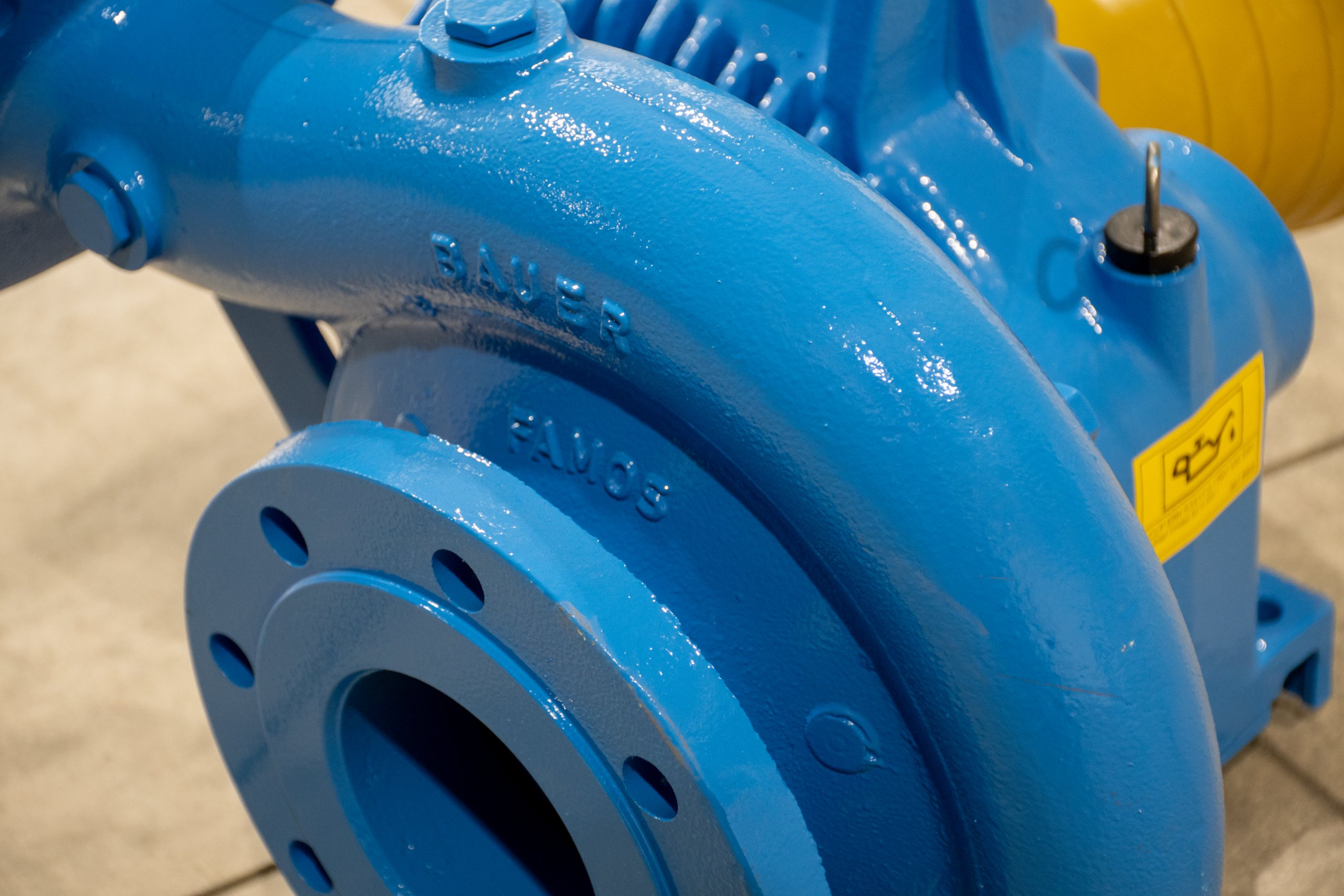

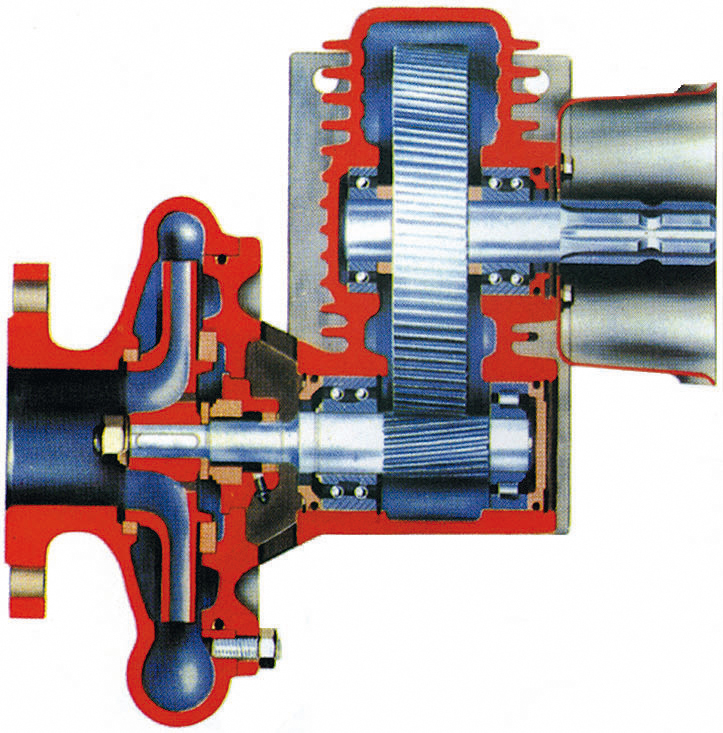

Like all BAUER products, the FAMOS pump also stands for exceptional durability, even under extreme conditions. We rely on European quality, only use the very best raw materials and set ourselves the highest standards of perfection. Also the inside of the Famos pump is very impressive: the optimal shape of the volute housing, the precision shaft support ball-bearing and the technically sophisticated built-on gearbox with spiral gearing are the basis for smooth and reliable operation.

Bauer Beregnung Pumpe_Famos
A perfect composition

The Famos always fits

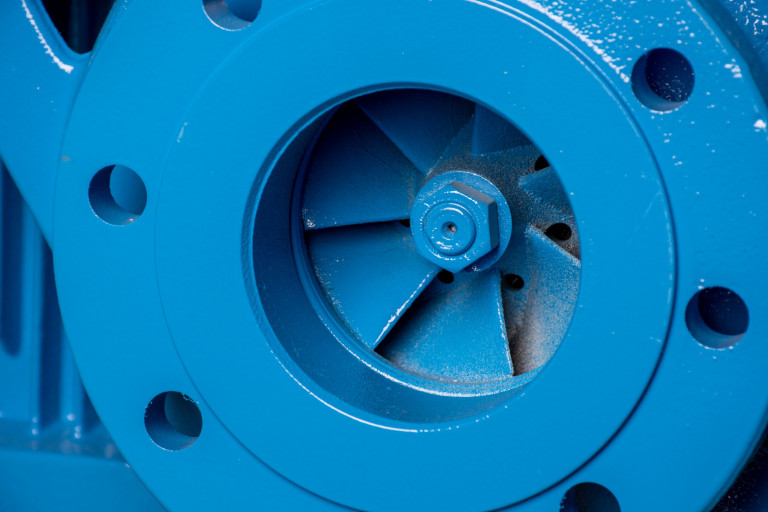

BAUER FAMOS pumps feature maximum efficiency and economy due to an ideally shaped volute housing, a precision-machined impeller, shafts running in ball bearings, and a sophisticated gearbox with equal helical gearings. The power is transmitted directly from the tractor to the gearbox via a PTO shaft. The impulse generated by this mechanical energy is then transmitted to the liquid. All components of the pump work together exactly. Thanks to their large performance range FAMOS pumps have a wide variety of applications in the agricultural market, especially in irrigation.

Performance
Efficiency
Quality
Usability
Performance

Properly graduated outputs make the FAMOS pump range highly adaptable in terms of operating requirements and guarantee maximum performance whether the pumps are supplying irrigation machines with up to 12 bars of pressure or sprinkler plants (pipes and sprinklers) with discharge capacities of up to 150m³/h.

Efficiency

BAUER FAMOS pumps feature maximum efficiency and economy due to an ideally shaped volute housing, a precision-machined impeller, shafts running in ball bearings, and a sophisticated gearbox with equal helical gearings.

Quality

High-grade materials processed by qualified technicians provide the BAUER FAMOS pump with the long life demanded from a good pump.

Usability

BAUER FAMOS pumps are user-friendly. The mechanical seal is maintenance-free and prevents air intake during the suction procedure. Therefore it is not necessary to readjust or replace the gland packing and pump operation is not disturbed by water leaking from the shaft seal. The oil-filled gearbox is ideally suited for the tough operating conditions in agricultural applications.

Bild 1 von 3

Technical specifications BAUER FAMOS

FAMOS ModelPTO speed up to rpmDischarge capacity up to m3/hHead up to mSuction connection DNDelivery connection DNWeight kg
III 605408085655048
IV 8054090125806573
V 100540150851008063
